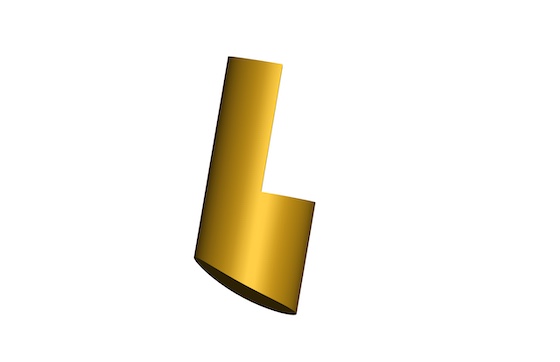

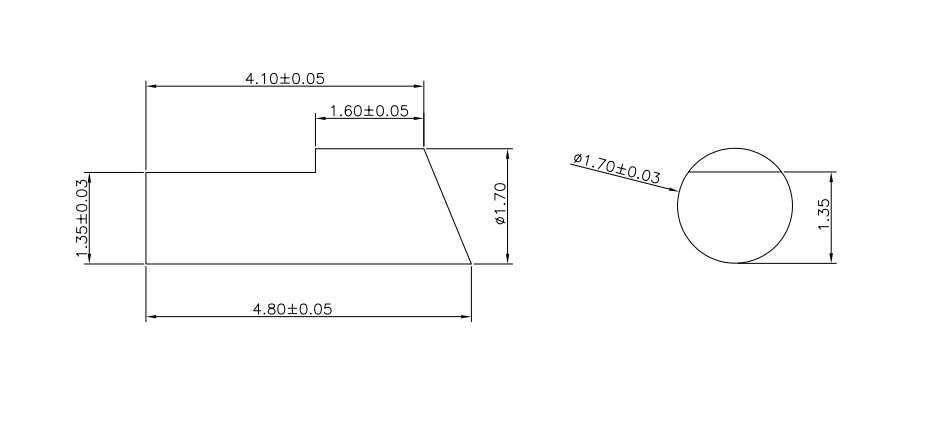

DX-4001 Special-Shaped Copper Stud
Max Outer Diameter：1.7mm
Total Length：4.8mm
Rating：12V/1A
Max Impedance：30mΩ
Material：HBi59 brass, 8U platinum-gold plating
P4417
- Custom irregular shape, fits offset & special narrow space layout for PCB spacing & conduction
- 8U platinum-gold plating delivers superior anti-oxidation & acid/alkali corrosion resistance
- Rigid HBi59 brass ensures high machining precision, stable shape during soldering
- Low 30mΩ impedance enables steady 1A power and signal transmission with low loss
- All-in-one design works as both structural support spacer and conductive contact
Smart wearables, precision mini digital devices, compact medical instruments, customized electronics. Custom shape, plating and electrical specs available via mold opening.
