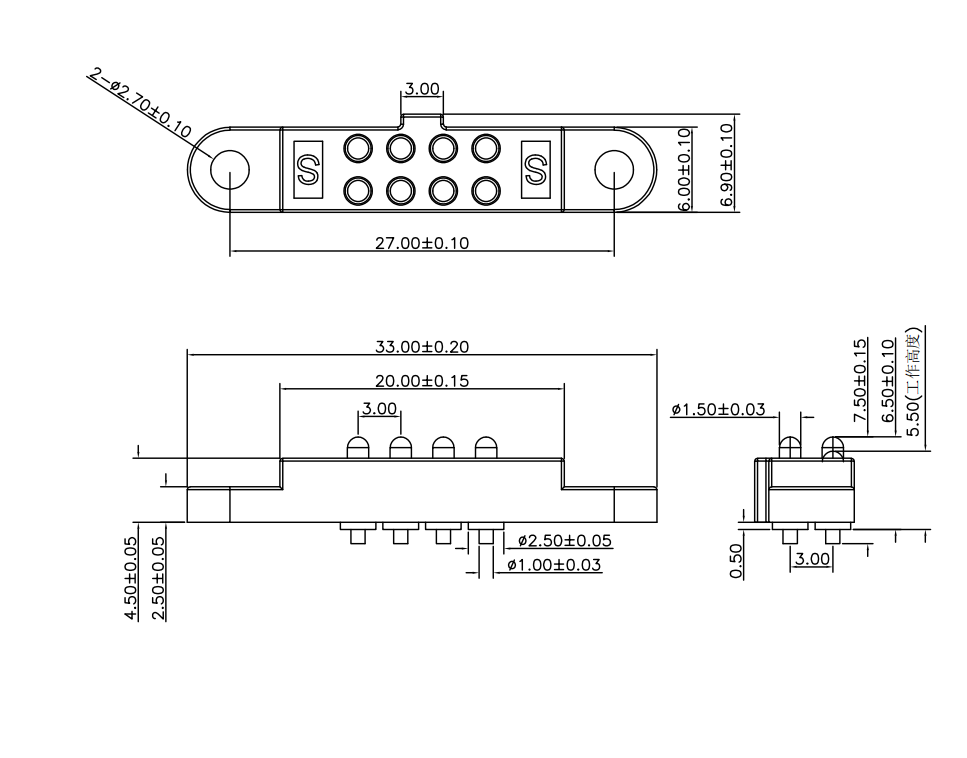

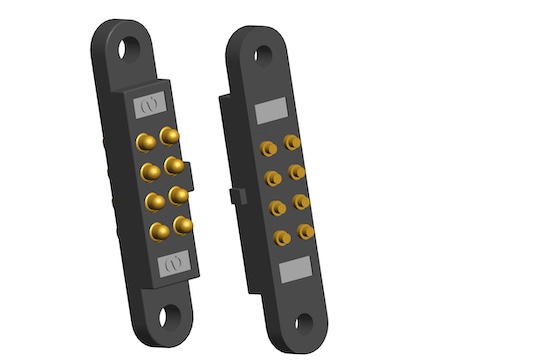

DX-3065 8Pin Magnetic Connector
Pin Max OD：2.5mm,
Overall Length：7.5mm
Rating：12V/3.0A
Spring Force：25±5g
Max Contact Resistance：100mΩ,
Cycle Life：10,000 times
Material：3604 brass
10U gold plating
DX3065
P2640
- 8-contact integrated design, supports 3A high-current charging & multi-channel signal transmission simultaneously
- 10U gold-plated pins pass over 72-hour salt spray test, outstanding anti-oxidation and moisture resistance
- Gentle 25g spring force enables smooth magnetic alignment, no scratch damage to contact surface
- Tape & reel SMT packaging compatible with auto mounting machines, daily output over 500,000pcs
- Solid brass pin core maintains stable shape after thousands of plug-and-pull cycles
Mainly for TWS Bluetooth earbud charging case magnetic docking; also fits smart wearables, portable digital gadgets, beauty devices, mini power banks. Custom pin count, current and dimensions are available.
