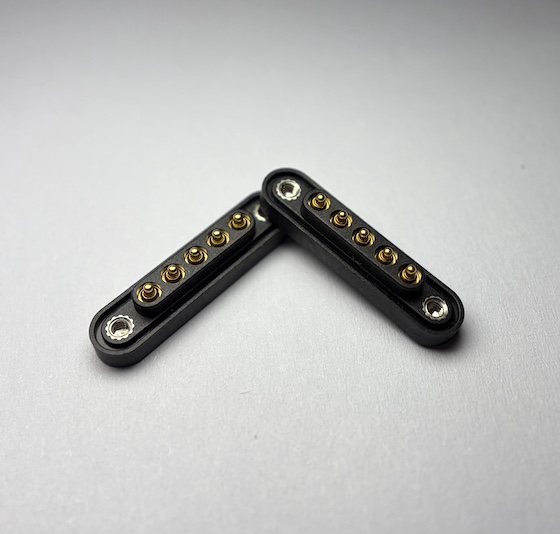

DX-5138 5P Waterproof Connector with Silicone Gasket
P Number：5Pins
Pitch：2.54mm
Pin Max OD：2mm
Overall Length：5mm
Rating：12V/2.5A
Spring Force：50g±15g
Contact Resistance：20mΩ
Cycle Life：50,000 cycles
Material: Lead-free C6801 copper, 10U gold plating

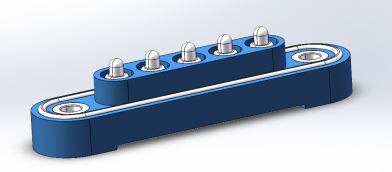

5138-3D

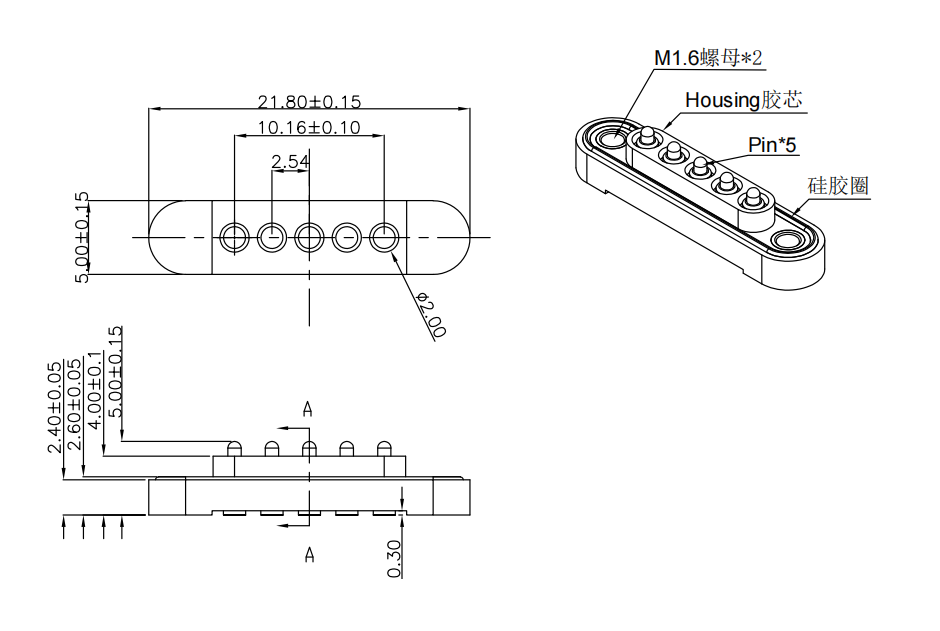

5138 Dimensions
Waterproof apron connector
- Silicone ring sealing design for stable waterproof & dustproof performance, easy assembly
- Ultra-low 20mΩ contact resistance ensures low heat generation under 2.5A load, reliable power & signal transmission
- Extra long 50,000 mating cycles, slow spring force fatigue for extended service life
- Eco-friendly lead-free C6801 copper with great toughness, anti-deformation for compact device assembly
- 10U gold plating delivers strong anti-oxidation and moisture resistance for consistent conductivity
Smart sports watches, waterproof TWS earbuds, outdoor portable electronics, mini waterproof therapy devices, submersible micro electronics. Custom pin count, size and sealing structure are available.
