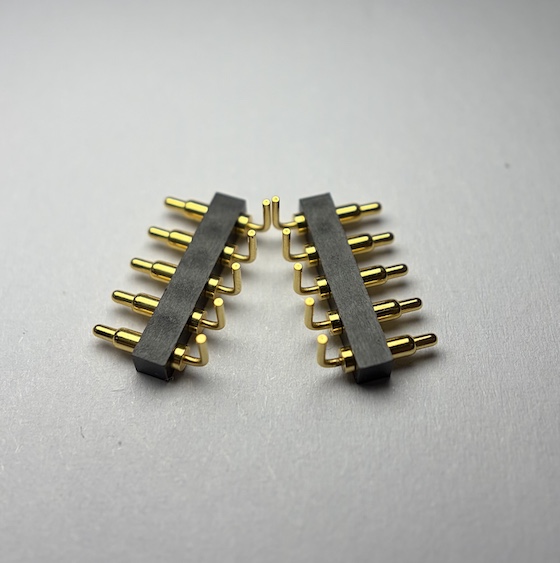

DX-3128 Bent Type Pogopin Spring Pin
Max Outer Diameter: 1.8mm,
Total Length: 12.1mm
Rating: 12V/1.0A,
Spring Force: 100g±20g
Contact Resistance: 100mΩ,
Service Life: 10,000 cycles
Material: 3604 brass,
3U gold plating
Bending Plate

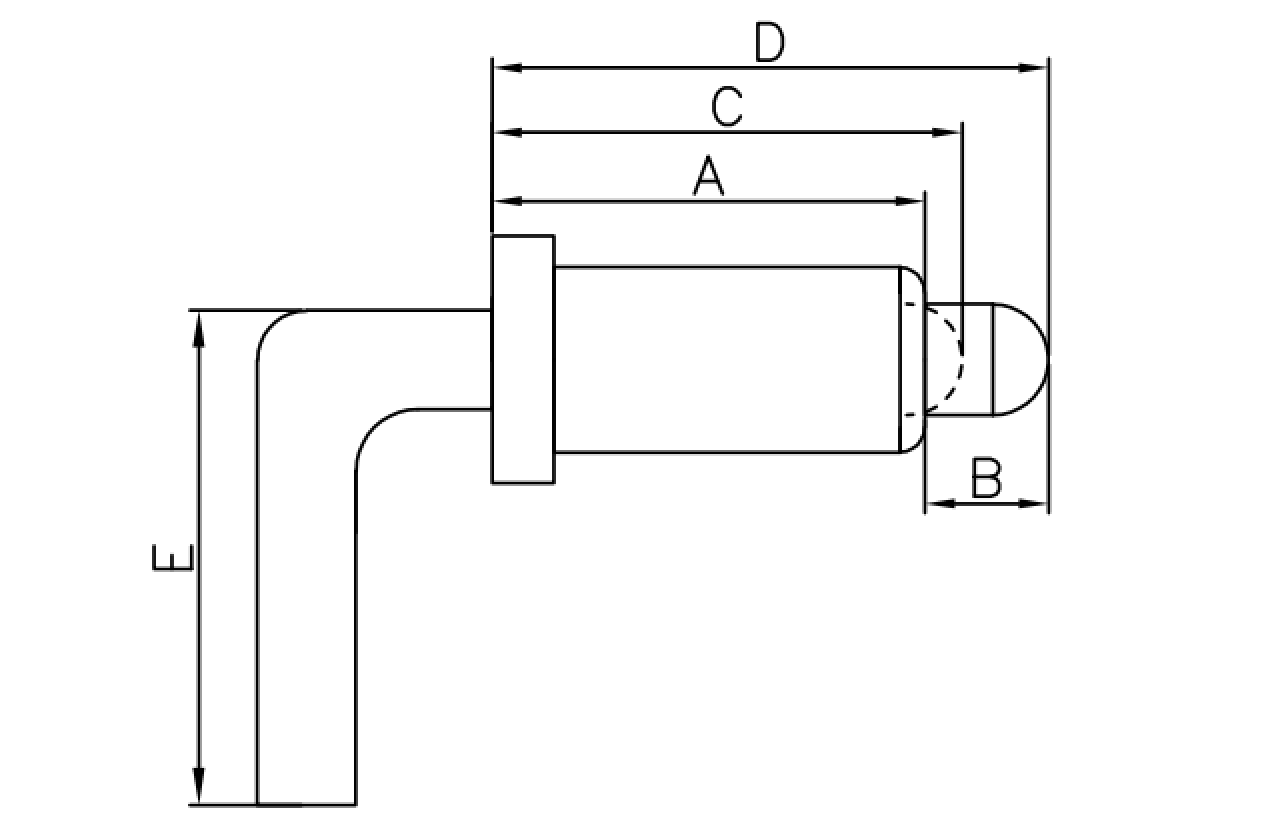

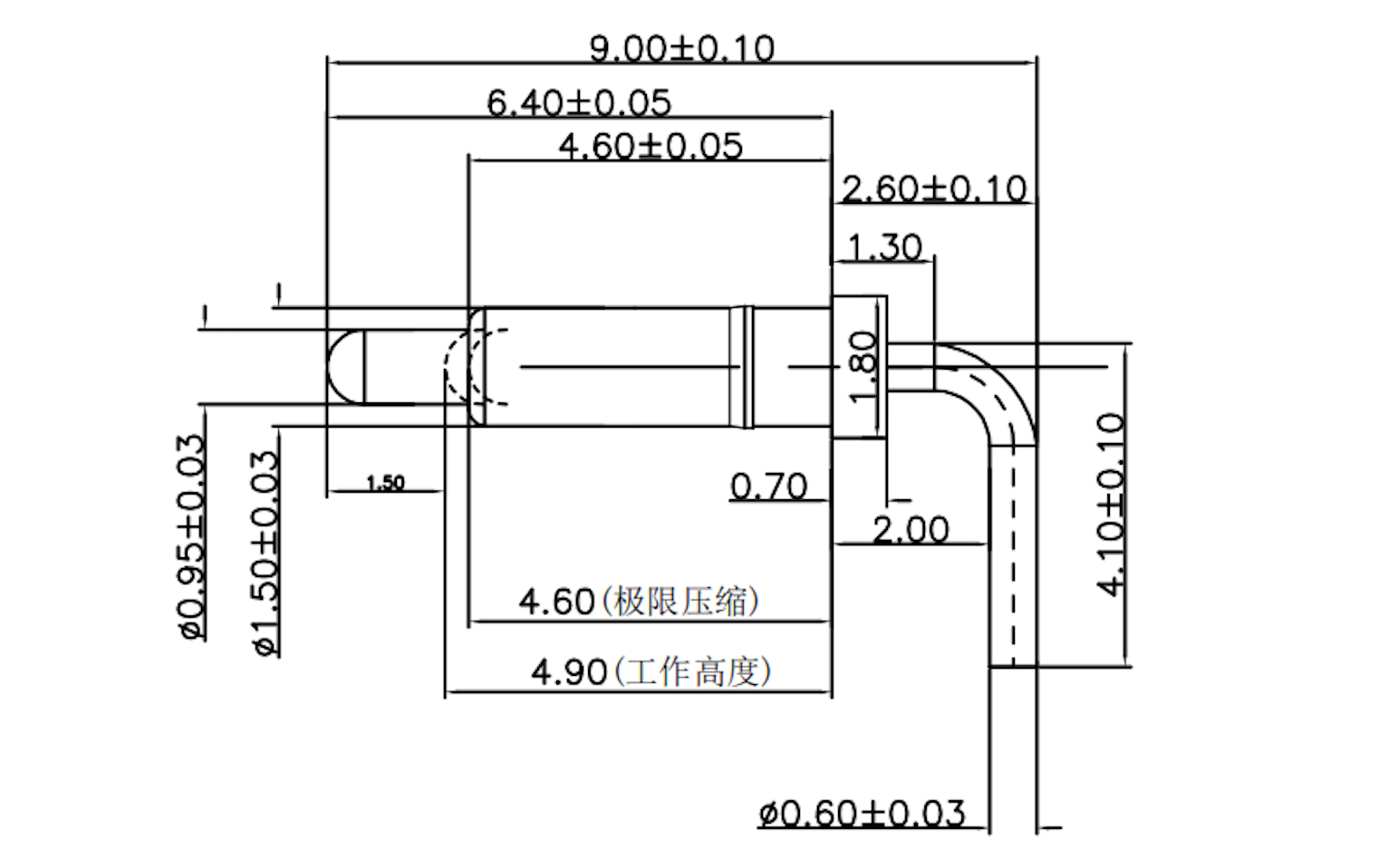

DX3128 Single Needle Size

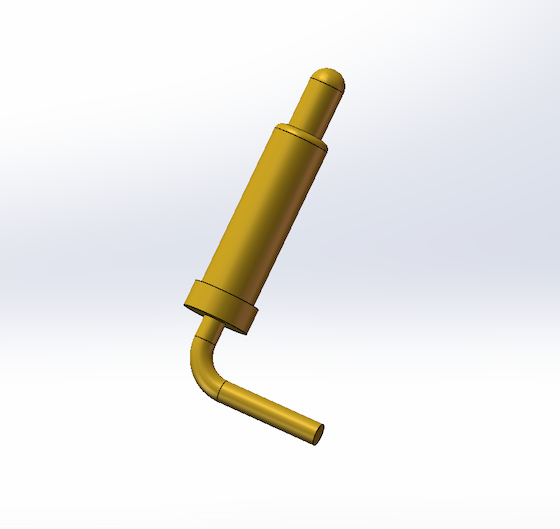

- Custom bent shape, perfect for narrow or offset internal device layouts
- Superior stable contact performance, consistent spring force prevents intermittent connection
- Tail welding profile is customizable to fit various PCB and wire soldering demands
- Stiff 3604 brass resists springback after bending, stable under high soldering temperature
- 3U gold plating offers basic anti-oxidation & corrosion protection for steady low-current and signal transmission
Ideal for compact digital gadgets, smart accessories, mini energy storage modules, tiny monitoring devices with offset assembly layouts. Custom bend angle, solder tail and spring force are available.
