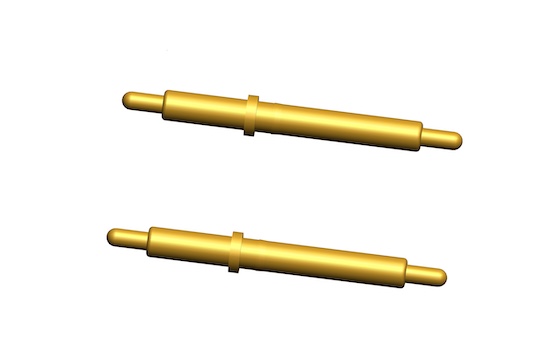

DX-2225 Double-ended Pogopin Spring Pin
Max OD：2mm
Total Length：9.61mm
Rating：12V/1.0A
Spring Force：150g±20%
Contact Resistance：100mΩ
Lifespan：10,000 cycles
Material：3604 brass
10U gold plating

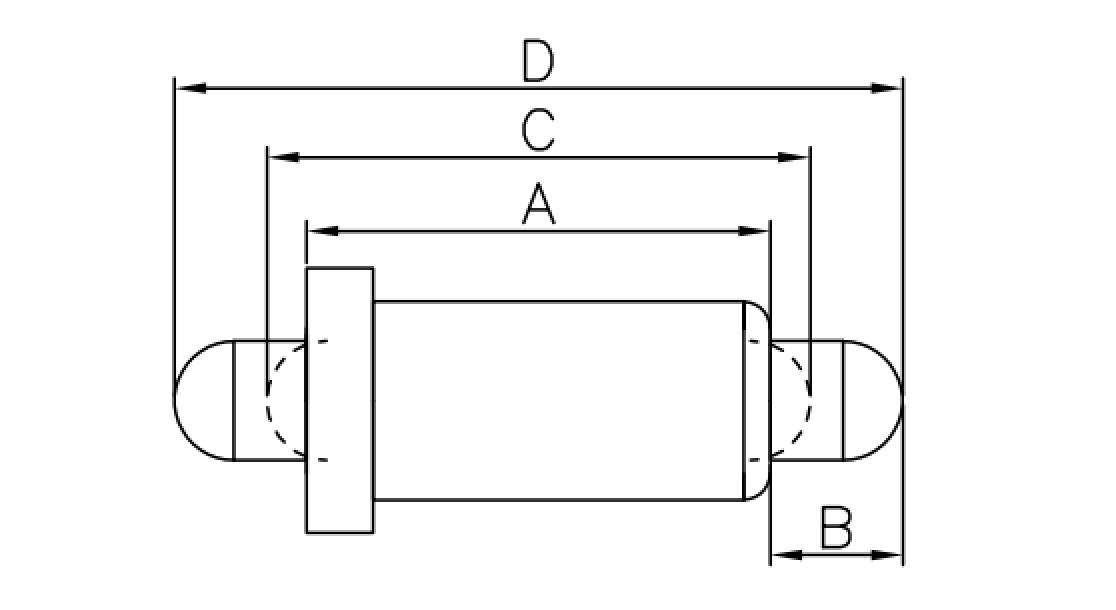

double-ended template

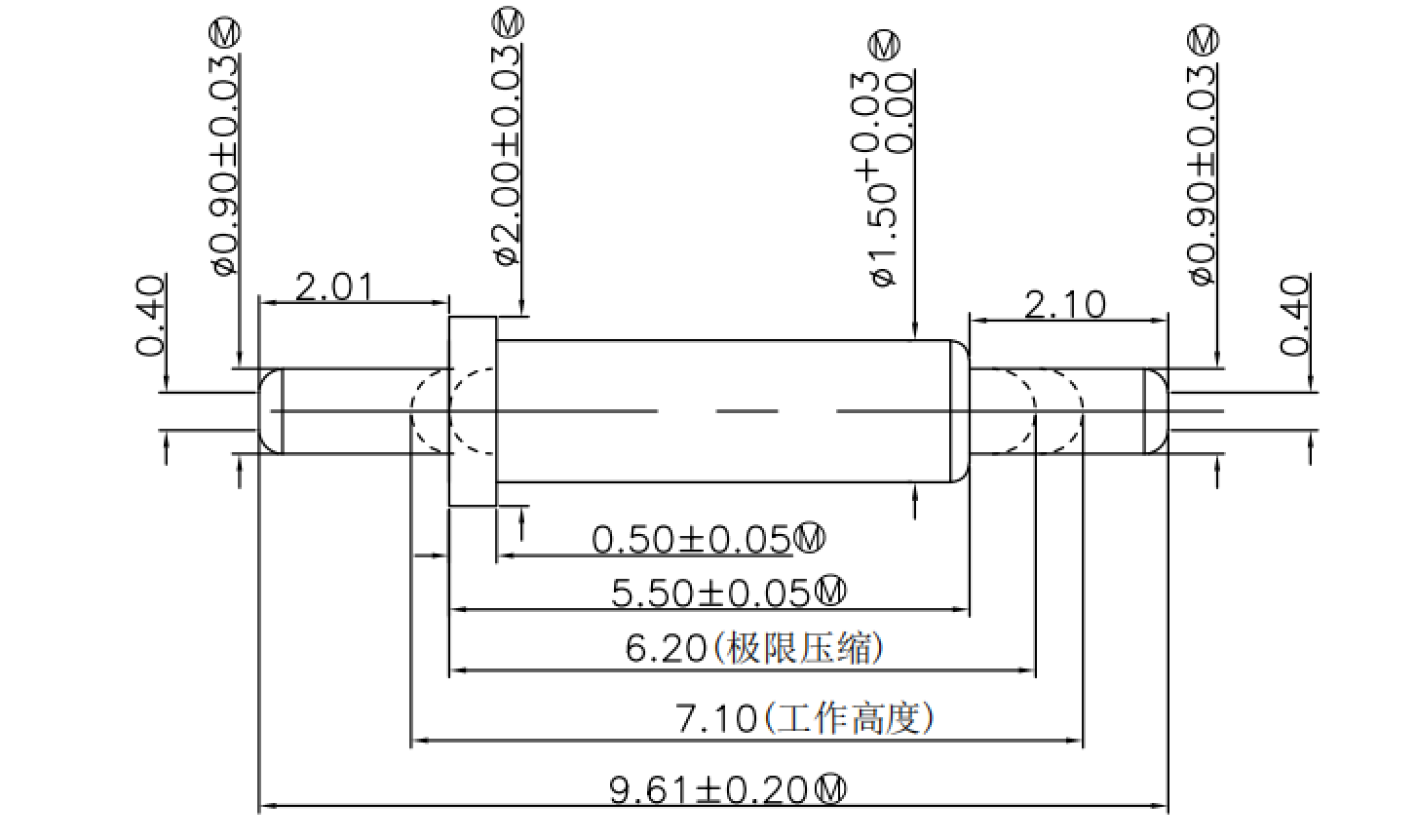

DX2171 Dimensions
- Dual-end telescoping design with double-sided floating contact
- Separate customizable spring force for both ends to match different pressure needs
- 10U gold plating prevents oxidation, ensures stable low-current & signal transmission
- Sturdy 3604 brass body resists deformation after repeated pressing
- Optimized structure for sandwich and double-side compression assembly
Mechanical keyboard contact points, fetal heart monitors, and other mini precision devices requiring double-sided movable contact; customized size, force and current parameters available.
