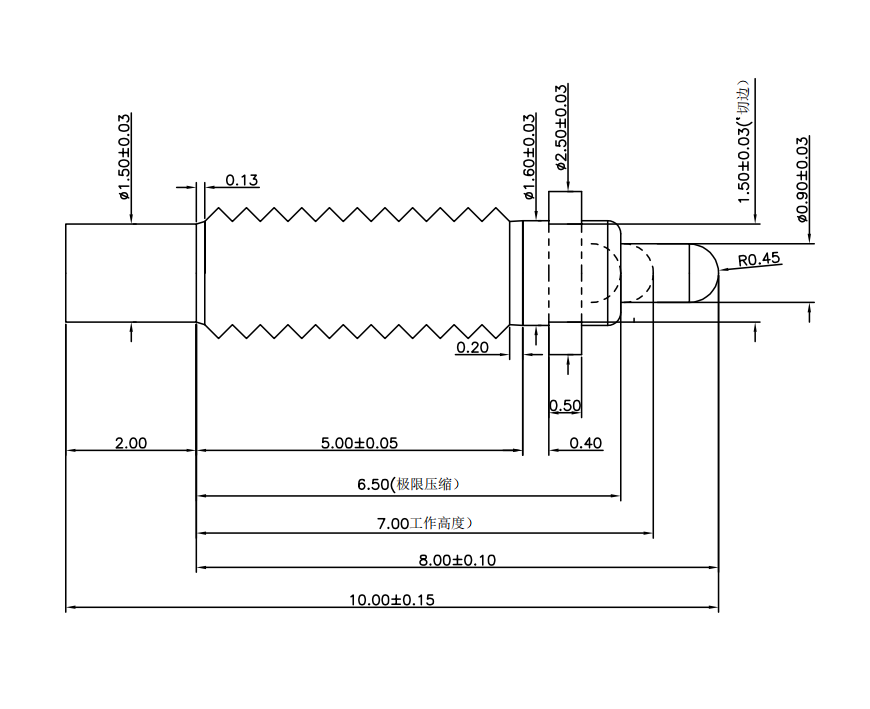

DX-3901 Special Shaped Single Pogopin Spring Pin
Max Outer Diameter：2.5mm
Total Length：10mm
Rating：12V/4.0A high current
Spring Force：80g±20%
Max Impedance：30mΩ
Cycle Life：10,000 cycles
Material：C3604 brass, 5U gold plating
P2805-1
P5073
DX3901
- Custom irregular single-pin shape, fits offset and narrow special internal device layouts
- High 4A current load capacity with low 30mΩ impedance, low heat generation during power delivery
- Balanced rigid & ductile C3604 brass maintains stable shape after special forming and soldering
- 5U gold plating prevents oxidation and corrosion for durable power & signal conduction
- Moderate 80g spring force ensures tight consistent contact after repeated mating
High-power compact digital products, portable fast-charging gadgets, energy storage battery modules, custom non-standard smart equipment, miniature industrial docking contacts. Custom shape, current rating, force and dimensions available via mold opening.
